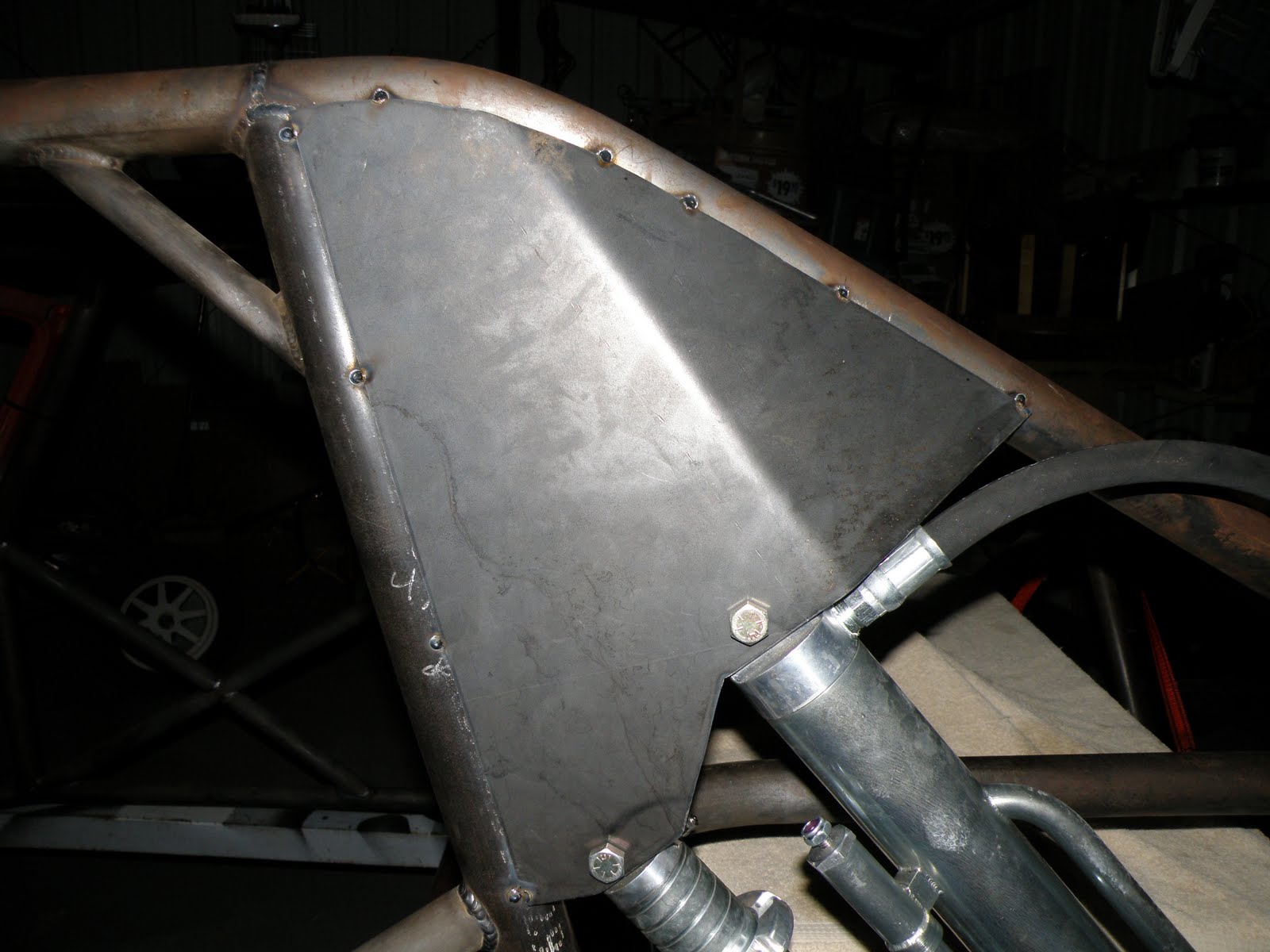

rear shock mounts. last one I promise

more shock mount

Got the inside plate mounted on the left side and started on the right. Spun out an aluminum "drill guide" to perfectly align the .500 holes in the inside plate. Eric, a question for you. Do I need to plate the bottom in the rear. I really do not want to as it's a place for dirt and moisture to collect.

Shock mounts final version

Thanks BJ and Erik for their input and hard work. Better pics when I get time.

Shock mounts

A couple of ideas for rear shock mounts.

Rear shocks

14" coilover and 16" 3 tube bypass. Time to start shock mounts.

Fuel cell

22 gal Jaz fuel cell.

Windshield Frame

Picked up a convertible windshield frame. Cut out excess metal and mounted to chassis with zip ties.

Axle's and cv's installed

Installed hubs in arms and installed axle's and cv's. Ready to cycle suspension.

Axle's and cv's

930 "lobro" cv's and sway a way axle's arrived. axle's came 26" long and had to be shortened to 25.5 ". Used lathe and cut off saw with carbide abrasive disk to shorten axle.

Trans mounts tacked in.

Chassis arrives at shop

Chassis arrives at the shop from Crumco.
